Our highest performance unit
Our highest performance unit
With high airflow rates the “DFW” is by far the most powerful and effective Air Curtain in Envirotec’s range. Specifically designed for very large openings up to 10 meters wide or high. Our Air curtains can control the movement of air and dust at entrances and exits to buildings, without the need for physical barriers that would restrict movement and vision within the facility.
An industrial unit,
made to blend into the modern well-designed warehouse.
Design
An industrial unit,
made to blend into the modern well-designed warehouse.
Our unit can be mounted horizontally above an opening, or vertically stacked to cover an opening depending on the needs of our customers. Ambient units will provide an energy cost effective method of controlling the temperature within the facility.
Overview

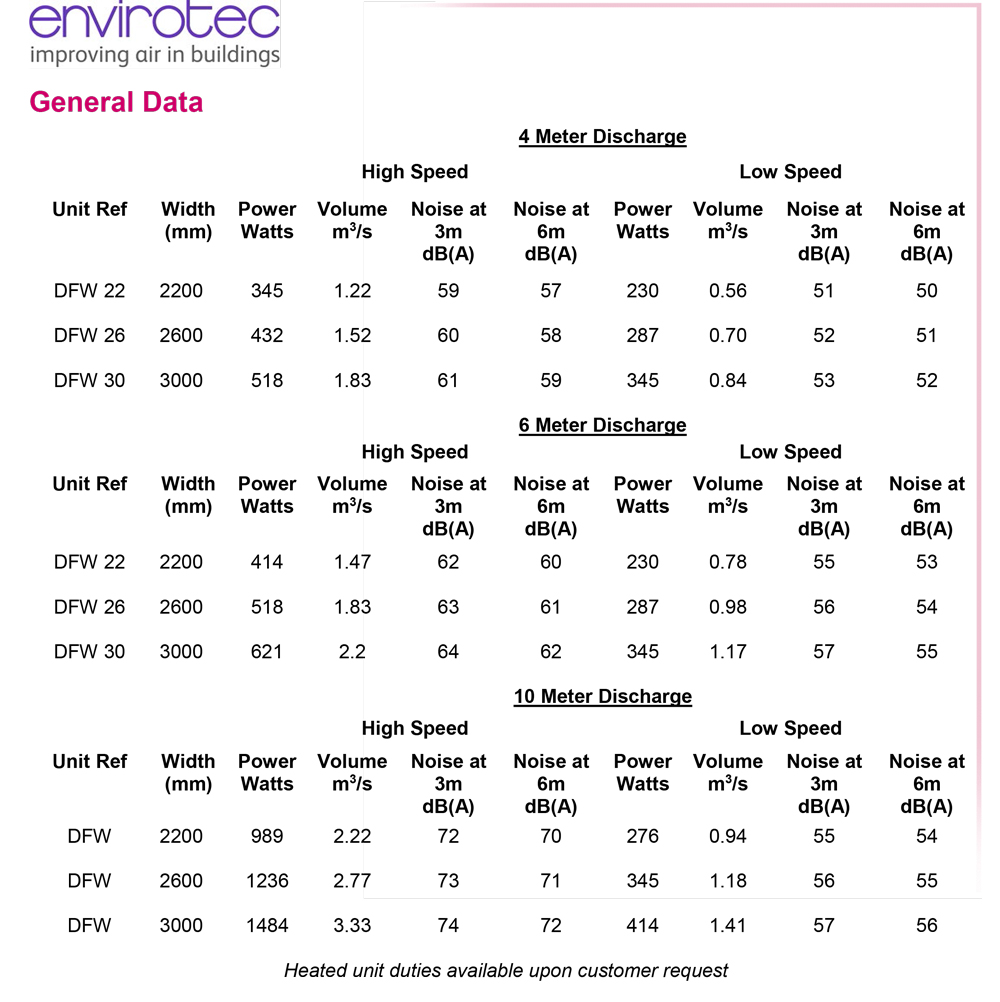

Discharge Distance
4, 6, 10 meters

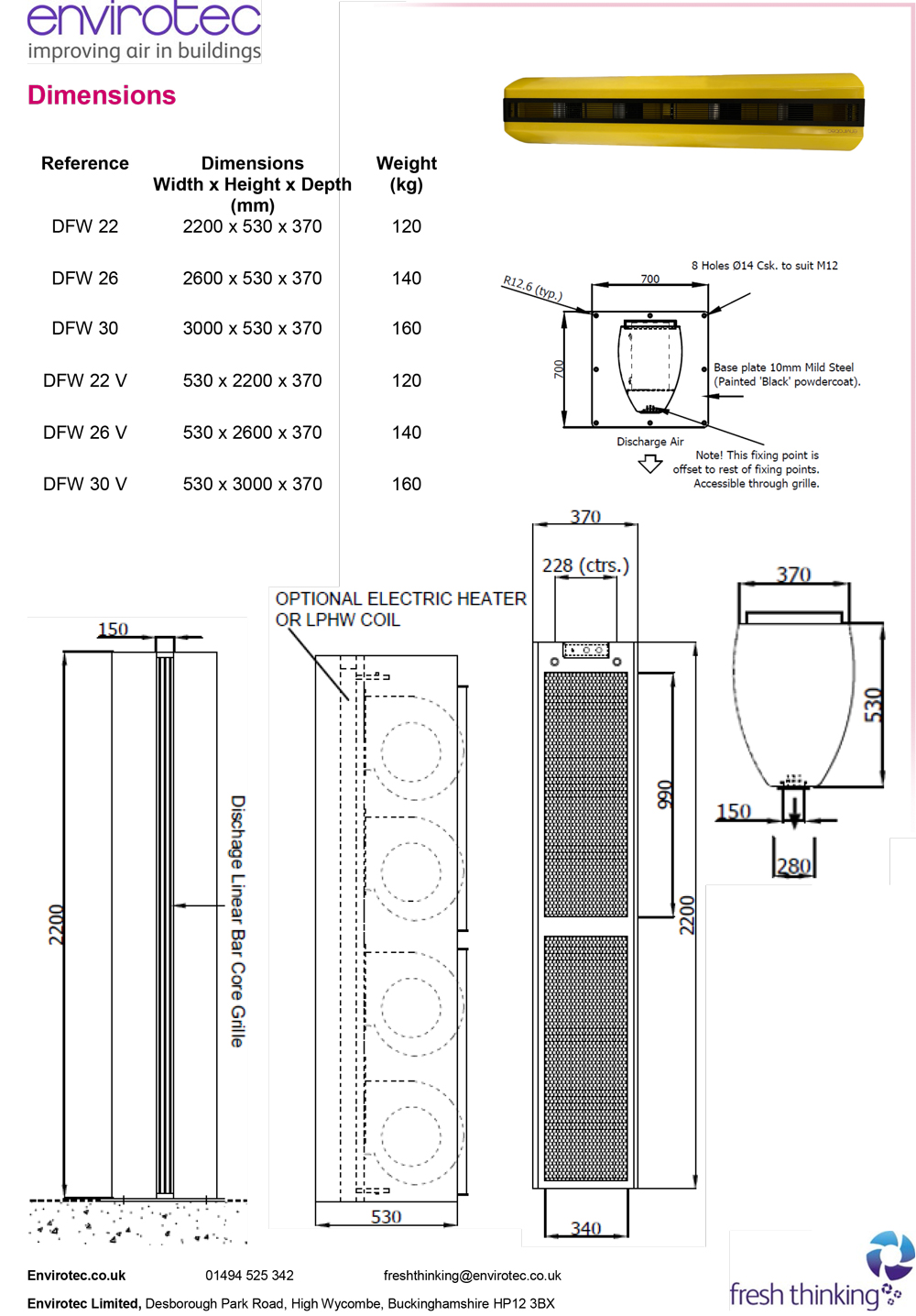

Standard Length/Height
2200, 2600, 3000 mm
Width x Depth
530 mm x 370 mm
Mounting
Horizontal with threaded drop rods or vertical with a base plate
Heat options
Ambient, Water, Electric
Standard Colours
RAL 1018 Yellow body & RAL 9005 Black grille / RAL 9010 White body & RAL 9005 Black grille
Custom Colours
Available subject to customer request
To discuss your requirements in more detail please contact one of our experts
To discuss your requirements in more detail please contact one of our experts at
Call: 01494 525 342 | Email: freshthinking@softdata-env.co.uk
Wiring
Wiring & Controls – Ambient Units
• Wired to: GSS634
• Terminal strip wiring available on request to allow for controls
• Single Phase supply (230/1/50)
Wiring & Controls – LPHW units
• Wired to: Enetec 18 – Water – EC fans
• Complete with wall mounted control panel
• Single phase supply (230/1/50)
Wiring & Controls – Electric Element Units
• Wired to: Enetec 18 – Electric – EC Fans
• Complete with wall mounted control panel
• Three-phase supply (415/3/50)
